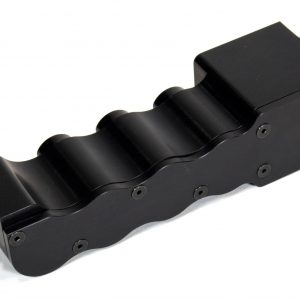

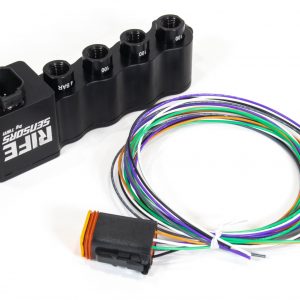

Rife Quad Pressure Sensors

SKU: N/A Categories: ,

Please call for pricing.

This product is currently out of stock and unavailable.

Description

Our pressure sensors have an extremely wide range of applications including but not limited to: Oil, Fuel, Boost/MAP, Dome, Transmission Line, Converter Charge, Coolant Pressure, Intercooler Pump, Cabin Pressure, Atmospheric/Ambient, Pre-Intercooler, Post-Intercooler, Aerodynamics, Exhaust Backpressure, EMAP, Brake Pressure, Nitrous, Power Steering, Crankcase Pressure/Vacuum, CO2



  • Vibration isolated sensors
  • -3 AN or 1/8 NPT connections
  • Automotive Grade Deutsch DT connectors
  • Sealed to IP69
  • Billet aluminum construction
  • Available in 1, 2, 3, or 4 sensor packages
  • Custom configurations available
  • Snubbers available to reduce damaging pressure spikes*
  • Industry standard 0-5V output
  • Compatible with all ECU’s/data loggers**
  • Reduced wiring clutter
  • Higher accuracy
  • Faster response
  • Flexible mounting options
  • All wetted parts are 316 stainless, Viton or anodized aluminum
  • Available sensor ranges 1 Bar, 3 Bar, 4 Bar, 5 Bar, 60psi, 100psi, 150psi, 200psi, 300psi, 1600psi, Custom*
  • Sensors with a specific O-Ring package for alcohol fuels (Ethanol, Methanol, E85, etc.) is available for 60/100/150/200psi sensors

Additional information

Sensor 1

Analog Input ( M5 Cable), 60 psi 3AN, 60 psi 1/8 NPT, 100 psi 3AN, 100 psi 1/8 NPT, 150 psi 3AN, 150 psi 1/8 NPT, 200 psi 3AN \ 200 psi 1/8 NPT, 300 psi 3AN, 300 psi 1/8 NPT, 500 psi 3AN, 500 psi 1/8 NPT, 1600 psi 3AN, 1600 psi 1/8 NPT, 1 Bar Map 3AN, 1 Bar Map 1/8 NPT, 2 Bar Map 3AN, 2 Bar Map 1/8 NPT, 3 Bar Map 3AN, 3 Bar Map 1/8 NPT, 4 Bar Map 3AN, 4 Bar Map 1/8 NPT, 5 Bar Map 3AN, 5 Bar Map 1/8 NPT, 7 Bar Map 3AN, 7 Bar Map 1/8 NPT, 10 Bar Map 3AN, 10 Bar Map 1/8 NPT
Sensor 2

Analog Input ( M5 Cable), 60 psi 3AN, 60 psi 1/8 NPT, 100 psi 3AN, 100 psi 1/8 NPT, 150 psi 3AN, 150 psi 1/8 NPT, 200 psi 3AN \ 200 psi 1/8 NPT, 300 psi 3AN, 300 psi 1/8 NPT, 500 psi 3AN, 500 psi 1/8 NPT, 1600 psi 3AN, 1600 psi 1/8 NPT, 1 Bar Map 3AN, 1 Bar Map 1/8 NPT, 2 Bar Map 3AN, 2 Bar Map 1/8 NPT, 3 Bar Map 3AN, 3 Bar Map 1/8 NPT, 4 Bar Map 3AN, 4 Bar Map 1/8 NPT, 5 Bar Map 3AN, 5 Bar Map 1/8 NPT, 7 Bar Map 3AN, 7 Bar Map 1/8 NPT, 10 Bar Map 3AN, 10 Bar Map 1/8 NPT
Sensor 3

Analog Input ( M5 Cable), 60 psi 3AN, 60 psi 1/8 NPT, 100 psi 3AN, 100 psi 1/8 NPT, 150 psi 3AN, 150 psi 1/8 NPT, 200 psi 3AN \ 200 psi 1/8 NPT, 300 psi 3AN, 300 psi 1/8 NPT, 500 psi 3AN, 500 psi 1/8 NPT, 1600 psi 3AN, 1600 psi 1/8 NPT, 1 Bar Map 3AN, 1 Bar Map 1/8 NPT, 2 Bar Map 3AN, 2 Bar Map 1/8 NPT, 3 Bar Map 3AN, 3 Bar Map 1/8 NPT, 4 Bar Map 3AN, 4 Bar Map 1/8 NPT, 5 Bar Map 3AN, 5 Bar Map 1/8 NPT, 7 Bar Map 3AN, 7 Bar Map 1/8 NPT, 10 Bar Map 3AN, 10 Bar Map 1/8 NPT
Sensor 4

Analog Input ( M5 Cable), 60 psi 3AN, 60 psi 1/8 NPT, 100 psi 3AN, 100 psi 1/8 NPT, 150 psi 3AN, 150 psi 1/8 NPT, 200 psi 3AN \ 200 psi 1/8 NPT, 300 psi 3AN, 300 psi 1/8 NPT, 500 psi 3AN, 500 psi 1/8 NPT, 1600 psi 3AN, 1600 psi 1/8 NPT, 1 Bar Map 3AN, 1 Bar Map 1/8 NPT, 2 Bar Map 3AN, 2 Bar Map 1/8 NPT, 3 Bar Map 3AN, 3 Bar Map 1/8 NPT, 4 Bar Map 3AN, 4 Bar Map 1/8 NPT, 5 Bar Map 3AN, 5 Bar Map 1/8 NPT, 7 Bar Map 3AN, 7 Bar Map 1/8 NPT, 10 Bar Map 3AN, 10 Bar Map 1/8 NPT
Add Wire Harness?

3 Feet ( +$24 for 4 Wire +$29 for 6 Wire), 6 Feet ( +$28 for 4 Wire +$33 for 6 Wire), 9 Feet ( + $32 for 4 Wire +$37 for 6 Wire ), None
Make Sensors alcohol compatible?

Indicate slot #'s in Order notes on Checkout, 1 Slot (+5), 2 Slots (+10), 3 Slots (+15), 4 Slots (+20), No
Which Slots for Alcohol?

Sensor 1 is next to Connector, Slot 1, Slot 2, Slot 3, Slot 4, Slots 1 & 2, Slots 1 & 3, Slots 1 & 4, Slots 2 & 3, Slots 2 & 4, Slots 3 & 4, Slots 1, 2, & 3, Slots 1, 2, & 4, Slots 2, 3 & 4, All 4 Slots
